SK5103 FlexMatrix Medical Keyboard Controller with User-Programmable USB Keyboard with 9 AB Rotary Encoders, 16 Analog Sliders, 36 GPOs Support

介绍

The SK5103 is a USB keyboard designed for medical applications and other complex industrial applications with a user-programmable keyboard matrix, USB controlled GPOs, PWMs. The IC can be programmed to any keyboard with four matrix tables for FN and NUMLOCK (or RFN) cases, so the IC is the best choice for custom keyboard solution but with an off-the-shelf IC.

The SK5103 scans and encodes an 8-row by 18-column matrix. The key press events are translated to keyboard and mouse report. The encoder gets matrix information from on-chip flash matrix table. Sprintek provides Windows® application FlexMatrix Editor and Programmer software to edit, download and upload the matrix table.

The SK5103 scans 9 AB rotary encoder inputs then reports the encoders’ rotation events as an 8-bit counter. The SK5103 deploys Sprintek encoder debounce algorithm to work with any mechanical encoders reliably. The SK5103 samples 16 channel analog inputs and reports the 8-bit absolute values to PC after a change.

The SK5103 needn’t install special software device driver at PC side to support GPOs, PWMs, AB rotary encoders and analog sliders.

功能

  • USB 2.0 full speed
  • User-Programmable keyboard matrix, scan code and macro keys
  • 4 sets of 8 x 20 keyboard matrix for Numlock(or RFN) and FN cases
  • Up to 255 Custom/Macro keys: generate “LCTRL+LALT+DEL”, “000” and “Diet Coke”
  • Interface 9 AB rotary encoders
  • Interface 16 analog sliders
  • Key-controlled and USB-controlled 36 GPOs via an external logic circuit
  • Key-controlled and USB-controlled 2 PWMs
  • No custom device driver is required
  • Support three FN control modes: Level, Toggle and Sticky
  • Support two delay keys
  • Supports USB selective suspend and remote wakeup
  • Built-in oscillator and digital circuit. No external crystal is needed
  • Windows® application to design keyboard matrix
  • Low profile QFN 56 pin package: 8x8mm 1.0 Max (LxWxH)
  • Low power consumption. 420uA (USB suspend) and 25 mA (USB operation)
  • 4.75 to 5.25V operating voltage
  • Commercial temperature range:0°C to +70°C
  • Custom versions available in small and large quantities

典型应用

  • Medical Keyboards (Ultrasound devices)
  • Industrial Keyboards

软件工具

点击这里下载。
FlexMatrix™ Editor 编辑工具
该软件用于生成配置数据二进制文件(键盘矩阵,宏键定义,扫描码定义和其他功能控制参数)。

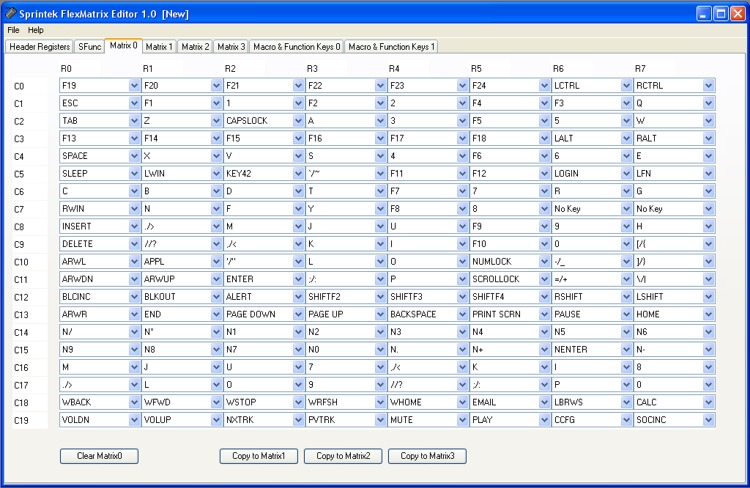

FlexMatrix Editor Screenshot
FlexMatrix™ Programmer 烧录工具
该软件用于将配置数据文件下载到键盘控制器。

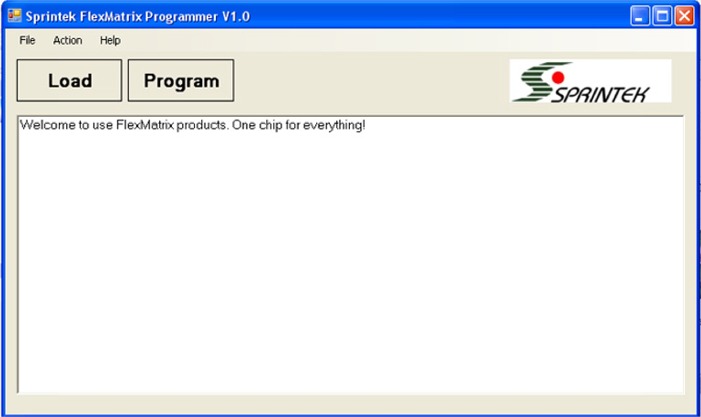

FlexMatrix Programmer Screenshot
FlexMatrix™ Tester 键盘测试工具
该软件用于测试所有Sprintek USB和PS/2键盘产品。

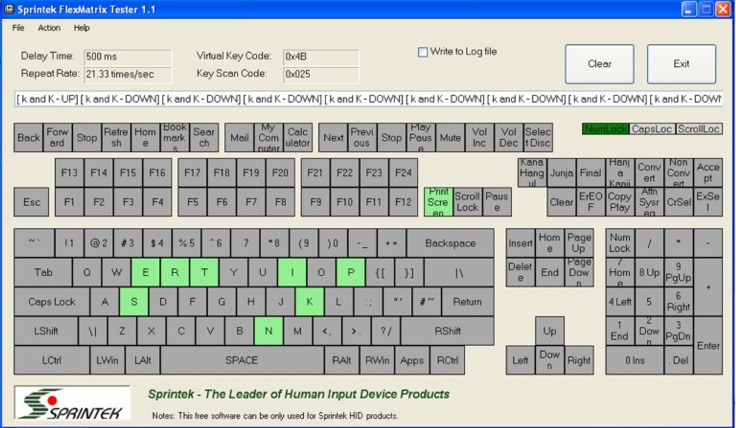

FlexMatrix Tester Screenshot

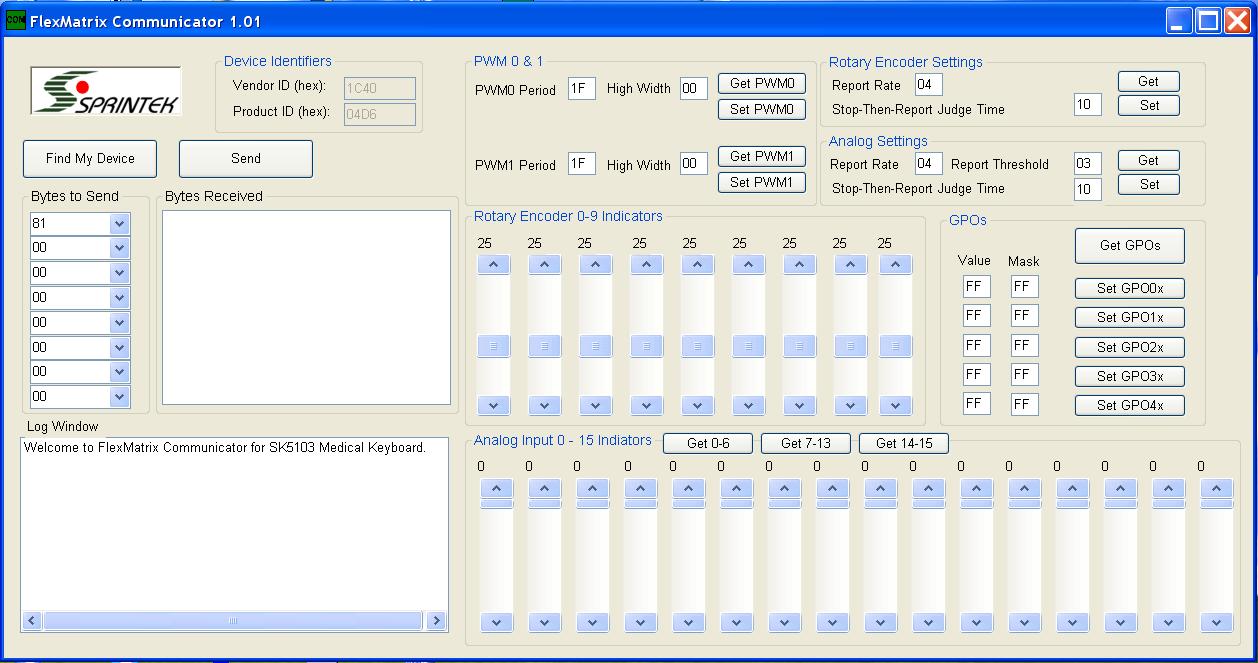

FlexMatrix™ Communicator 通信工具 SK5103
演示FlexMatrix™SK5103键盘控制器的所有功能。
FlexMatrix Editor Screenshot
