SK8702 - FlexPoint™ PS/2 Pointing Stick Mouse Module

Overview

The SK8702 pointing stick module is a cost-effective, space-saving PS/2 mouse device deploying a Sprintek SK7102 pointing stick controller. Typically, consuming 650uA in idle state, the SK8702 is ideal for battery-operated systems.

Deploying CellMute technology to filter the wireless EMI noise from cellular phones and wireless networks, the SK8702 modules can work quietly in wireless environment.

The SK8702 module partially implements the Lenovo TrackPoint® extended command protocol and can work with Lenovo TrackPoint® device drivers directly.

Features

  • Low cost and space saving solution
  • PS/2 mouse interface with extended commands
  • Advanced motion control algorithm
  • Z-Tap algorithm to simulate left button click, double click and drag
  • CellMute™ technology filters the wireless EMI noise from cellular phones and wireless networks
  • Works with standard Windows® mouse drivers
  • Works with Lenovo TrackPoint® drivers
  • Low power consumption. 650uA (idle), 2.1 mA (operation)
  • 3.15V to 5.25V operating voltage

Typical Applications

  • Notebook/Laptop computer
  • Handhelds
  • Keyboards
  • Instrumentation

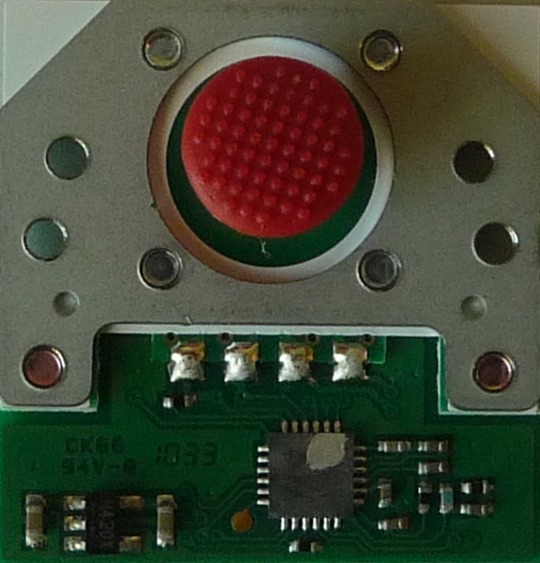

SK8702 Pointing Stick Module

Technical Documents

DS0013 - SK8702 Datasheet

Support Software

A set of software tools were developed to support SK7102 design. Click here to download these tools.
  • JOYTEST.exe - General Pointing Stick test program
  • PSCOM.exe - Send PS/2 command and receive response
  • AD reader - Read X, Y, Z AD value
