SK8707-51 - FlexPoint™ Low Profile PS/2 Pointing Stick Mouse Module (Integrated Design)

Overview

The SK8707-51 FlexPoint™ pointing stick module is a cost-effective, space-saving PS/2 mouse device deploying a Sprintek advanced pointing stick controller.

Typically, consuming 650uA in idle state, the SK8707-51 is ideal for battery-operated systems.

Deploying CellMute™ technology to filter the wireless EMI noise from cellular phones and wireless networks, the SK8707-51 Modules can work quietly in wireless environment.

The SK8707-51 FlexPoint™ module partially implements the Lenovo TrackPoint® extended command protocol and can work with Lenovo TrackPoint® device drivers directly.

Features

  • Low cost and space saving solution
  • Advanced motion control algorithm
  • Z-Tap algorithm to simulate left button click, double click and drag
  • CellMute™ technology filters the wireless EMI noise from cellular phones and wireless networks
  • Works with standard Windows® mouse drivers
  • Works with Lenovo TrackPoint® drivers
  • Low power consumption. 650uA (idle), 2.46mA (operation)
  • 3.05V to 5.25V operating voltage. Other operating voltage is available upon request
  • Industry temperature range: -40°C to +85°C

Typical Applications

  • Notebook/Laptop computer
  • Handhelds
  • Keyboards
  • Instrumentation

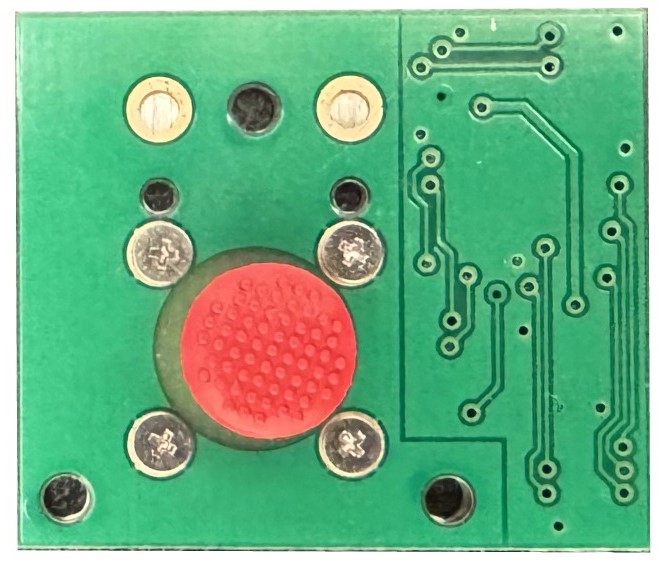

SK8707-51

Technical Documents

Support Software

A set of software tools were developed to support SK8707-51 design. Click here to download these tools.
