FlexMatrix™ Keyboard Encoder ICs

Standard for us, but customizable for you!
 FlexMatrix™ keyboard encoder ICs integrates very Flexible features such as macro keys, key controlled GPOs, PWM and IO backlit control, Fn key. Several types of macro keys are implemented to generate symbol ($, ), combination key (CTRL+ALT+DEL, SHIFT+F1), sequential key ("00", "Coke Cola"). Left Fn and Right Fn keys can select 4 matrix tables to map 4 different logic keys to one physical keys. Multiple level PWM/IO backlit control logic is embedded in to the ICs and you can build such complicated functioin without any programming. We provide standard FlexMatrix™ off-the-shelf keyboard encoder ICs, you provide your customers with custom keyboards.

Custom Requests

We are your design partners!
 Though our FlexMatrix™ keyboard encoder IC can meet >90% customers' needs, there are still some application need special keyboard encoder ICs due to the following reasons: cost, interface, special functions and etc. Sprintek keyboard encoder design team can make all such requests implemented at very reasonable cost. Riding on more than 20 years design experiences and existing mature products, Sprintek custom keyboard encoder IC service makes us be a dependable partner and vendor for you.

Off-The-Shelf FlexMatrix™ Keyboard Encoder IC List

SK5212 - Low Speed USB, 8x20 Scan, PWM Backlit, 4 LEDs

User-Programmable Low Speed USB Multimedia Keyboard Encoder with 8x20 Scan, PWM Backlight, Key Lock, Upgradable Bootloader

SK5222 - HID over I2C, 8x20 Scan, PWM Backlit, 4 LEDs

Ultra-Low Power, User-Programmable HID over I2C Keyboard Encoder with 8x20 Scan, PWM Backlight, Key Lock, Upgradable Bootloader

SK5223 - SMBus (or I2C), 8x20 Scan, PWM Backlit, 4 LEDs

Ultra-Low Power, User-Programmable SMBus (or I2C) Keyboard Scanner with 8x20 Scan, PWM Backlight, Upgradable Bootloader

SK5126 - USB or PS/2, 8x18 Scan, Extern PS/2, PWM Backlit, 2 GPOs

Indutrial temperature range for both USB and PS/2 modes. GPO, SCO, LED direct drive, PS/2 pass-through, KeyMouse, PS/2 device lock, POS friendly

SK5221 - HID over I2C, 8x20 Scan, Extern PS/2, PWM Backlit, 8 LEDs

Ultra-Low Power Low Cost HID over I2C Keyboard Encoder with 1 external PS/2, 1 PWM Backlight and 9 LEDs Control, Field-Upgradable Bootloader, PS/2 pass-through

SK5210 - USB and HID over I2C Combo, 8x20 Scan, Extern PS/2, PWM Backlit, 9 LEDs

USB and HID over I2C Dual Interface User Programmable FlexMatrix™ Keyboard Encoder with 1 external PS/2, PWM Backlit and 7 LEDs Control, Field-Upgradable Bootloader, PS/2 pass-through

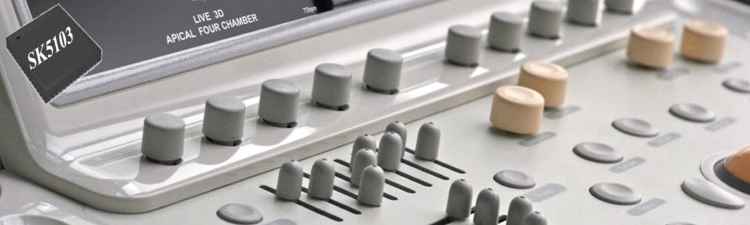

SK5103 - USB, 8x18 Scan, 2 PWMs, 36 GPOs, 9 Rotary Encoders, 16 Analog Sliders

Designed for medical ultrasound instruments. Supports 9 rotary encoders, 16 channel analog sliders, 36 GPOs, 2 PWMs

SK5100-LT - USB or PS/2, 8x20 Scan, Extern PS/2, PWM Backlit, 8 GPOs

Indutrial temperature GPO, SCO, PWM, Alert LED, LED direct drive

Old IC Parts List

The following parts are not recommended for new customers. Please use the replacement parts in your new projects.
Notes: These parts are still avaliable for existing customers.

SK5100-LF - USB or PS/2, 8x20 Scan, Extern PS/2, PWM Backlit, 8 GPOs

Replaced By: SK5100-LT

SK5101 - USB or PS/2, 8x20 Scan, Extern PS/2, PWM Backlit, 8 GPOs

Replaced By: SK5100-LT

SK5102 - USB only, Additional features: KeyMouse, AB rotary encoder key mapping

Replaced By: SK5100-LT

SK5122 - USB or PS/2, 8x18 Scan, Extern PS/2, 3 GPOs

Replaced By: SK5126-LT

SK5120 - USB, 8x18 Scan, Extern PS/2, 2 GPOs

Replaced By: SK5126-LT
